MINI 2001 SLI

Pneumatic handling

  • Extremely short removal times due to increased acceleration and speed
  • For parts and sprue removal up to 2.0 kg
  • For injection moulding machines up to 3000 kN

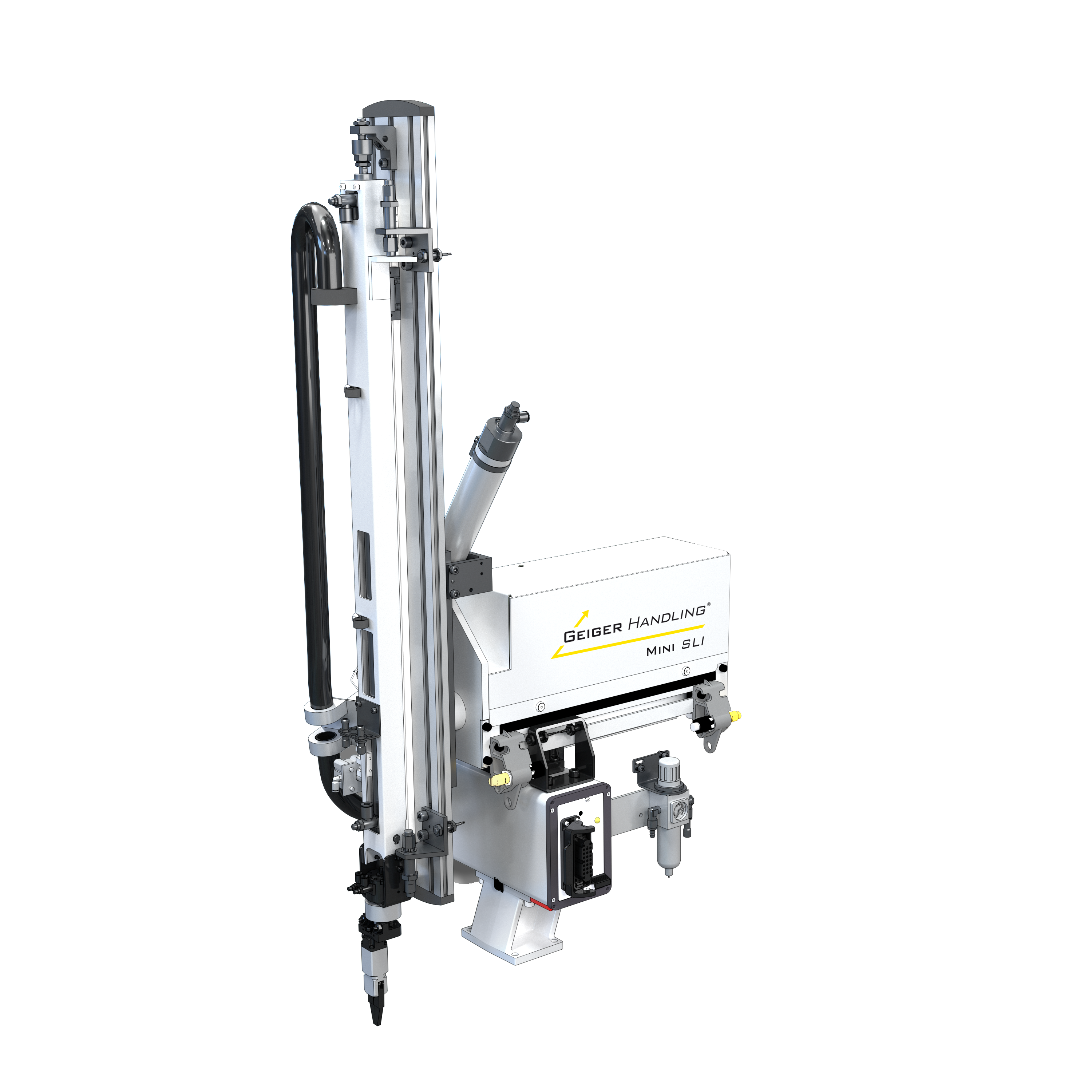

GEIGER Mini 2001 SLI

Technical Data:

  • All axes pneumatically driven
  • Repeat accuracy: ±0.2 mm
  • Parts and gripper weight together: up to 2 kg
  • Mains voltage: 230/110 V (50/60Hz)
  • Compressed air connection: 6 bar
  • Consumption approx. 10 Nl/cycle (without vacuum)
  • All Euromap 67 signals

Standard Version:

  • Rotary module B-axis
  • Vacuum circuit
  • Metal pliers AJ2012
  • Sliding bracket 500 mm
  • Unique high-speed system on the Y-axis
  • Committee evaluation

Options:

  • Monitoring rotary module B-axis
  • Special pliers
  • Gripper systems
  • Suction plates

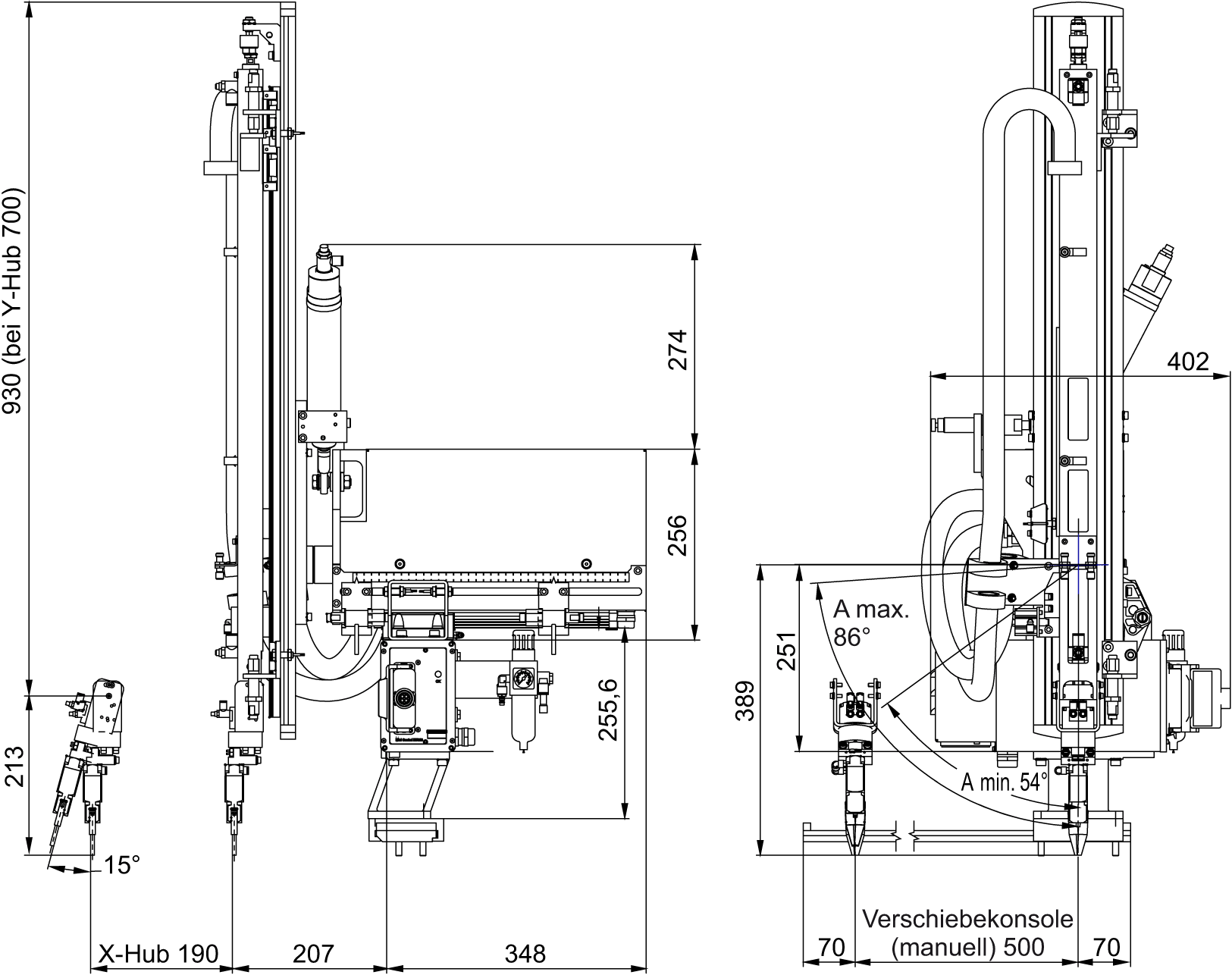

Dimensions:
