Motion Liner
5.0 XD | 10.0 XD | 20.0 XD

  • Freely programmable control with EASY TOUCH
  • 1 air circuit
  • 1 vacuum circuit
  • CEE socket switched for conveyor belt

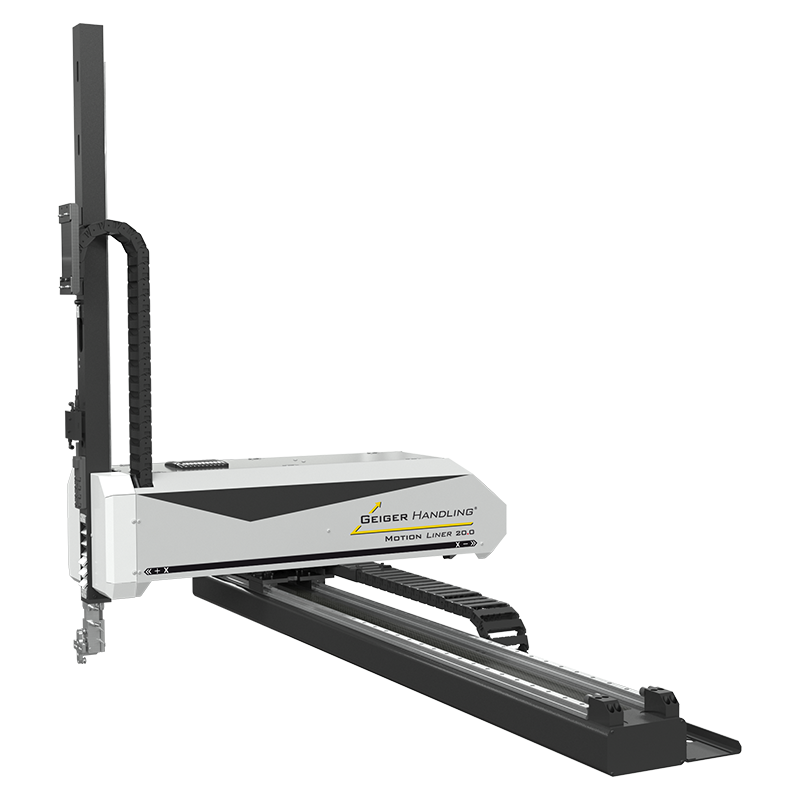

MOTION LINER
5.0 XD | 10.0 XD |
20.0 XD

  • Proven modular system
  • Intuitively programmable controller
  • Highly dynamic servo drive technology
  • Precisely matched expansion options
  • Sprue removal, part insertion, stacking or palletizing
  • Load capacity 5.0, 10.0 or 20.0 kg
  • Use on injection moulding machines, autom. processing machines, assembly applications

Optionen:

  • Multi Head

Anwendung:

  • High dynamic X-axis
  • 2 component applications
  • Tools with high core puller
  • Machine intrusion from above

Technical Data:

5.0 (max. 5 kg) | 10.0 (max. 10 kg) | 20.0 (max. 20 kg)
Axes X/Y AC-linear motor
Axis Y AC-servo motor
Repeatability ±0,1 mm
Part and gripper weight together 5 kg | 10 kg | 20 kg
Connected load 400 - 480 V (60/50 Hz)
Comp. air connection 6 bar
Interface Euromap 67 signals

Dimensions (in mm):

  5.0 | 10.0 20.0
X stroke 600; 800
Y stroke 800 - 1600
Z stroke 1600 - 4300
(1) 496 496
(2) 277 296
(3) 356 361
(4) 263 263
(5) 411 421
(6) 239 239
(7) 660 660

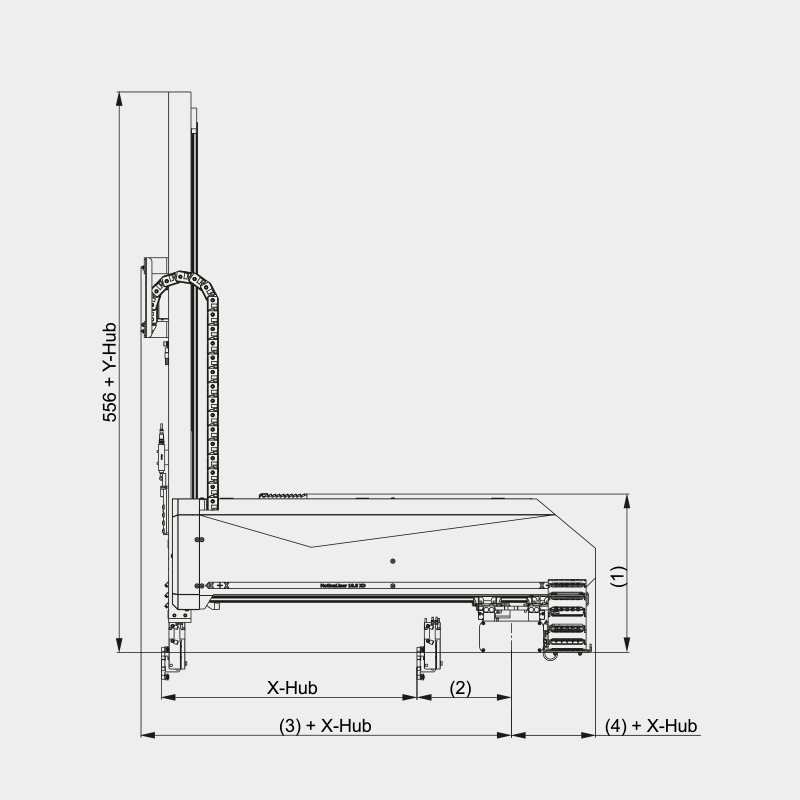

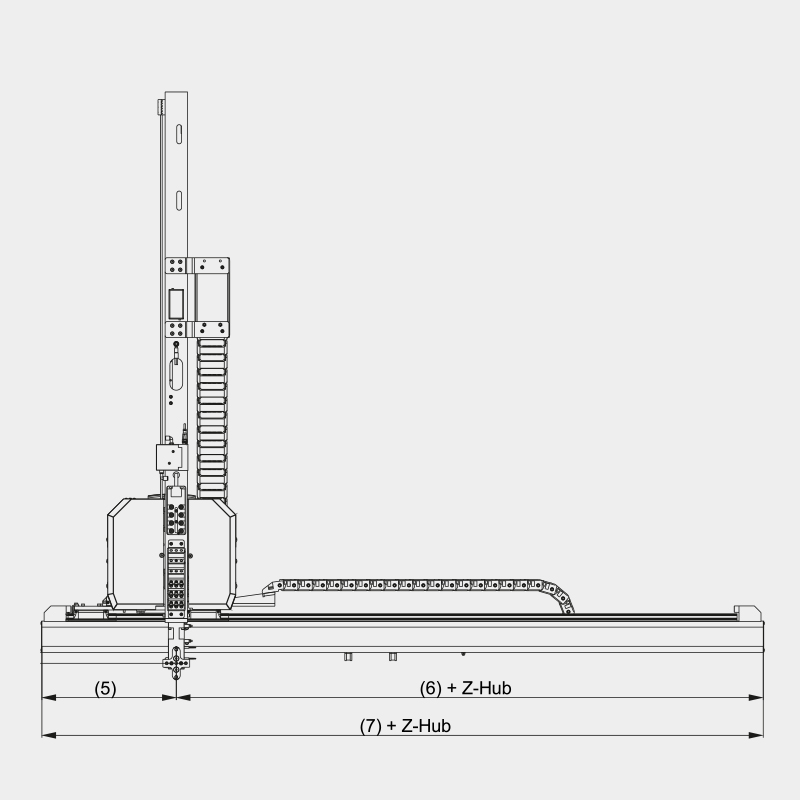

Dimensions MOTION LINER 20.0 XD
